COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall

  • 1
  • 2
  • 3

Brand Name : TBC

Model Number : COB P1.25

Certification : CE-EMC, CE-LVD, RoHS, ETL, FCC

Place of Origin : China

MOQ : 10sqm

Price : Negotiable

Payment Terms : T/T,Western Union,PayPal

Supply Ability : 10,000sqm/month

Delivery Time : 25days

Packaging Details : Wooden Box

Pixel Pitch : 1.25mm

Module Size : 150×168.75mm

Panel Dimension : 600x337.5×42mm

Brightness : Standard 600nits

Cabinet weight : 4.5kg/panel

Material : Die-casting Aluminium

Maintenance Way : Front Service

Input Voltage : AC100~240V 50/60Hz

Warranty : 3 years

Contact Now

Indoor 4K LED Video Wall COB P1.25 600×337.5 Panel with 600nits Brightness COB Technology and Seamless Splicing Large LED Display HD LED Wall Modular LED Display
COB Technology Waterproof Dustproof Magnetic Front Access Durable Module 150×168.75mm
COB Series Specifications:
Parameter P1.25 P1.875
Pixel Density 640,000 px/㎡ 284,089 px/㎡
LED Chip Flip Chip
Module Size (W*H) 150*168.75mm
Module Resolution 120*135 dots 80*90 dots
Surface Treatment Matt COB
Surface Hardness 4H
Panel Size (W*H*D) 600mm*337.5mm*42mm
Panel Weight 4.5 kg / panel
Panel Resolution (dots) 480*270 320*180
Material Die-casting Aluminium
Circuit Design Common Anode Circuit
Flash Correction Storage Applicable
Brightness Standard 600nits
Refresh Rate 3840Hz
Contrast Ratio 20000:1 (Condition without lighting)
Color Temperature 9300K (Standard)
Viewing Angle H160°, V160°
Input Voltage AC 220 or 100~240V 50/60Hz
Max. Power Consumption (White Balance 600nits) 70 w/panel 70 w/panel
Maintenance Way Front Service
IP level of PCB surface IP65 (Washable by clean water)
Lifetime at 50% Brightness 100,000 hours
Operating Temperature / Humidity -10°C-+40°C/10%RH-90%RH
Storage Temperature / Humidity -20°C-+60°C/10%RH-90%RH
Certificate CCC, EMC CLASS-A, ROHS, CQC
Application Indoor
Warranty 3 years
COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall

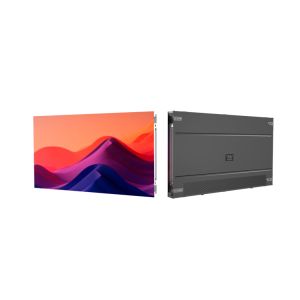

COB LED Product Details

The standard COB cabinet (600×337.5mm) adopts a hard-connection design with a non-customizable panel size. It is equipped with a customized Megmeet wide-voltage power supply (100~240V, non-selectable) and offers optional NovaStar receiving cards (A10s Pro, A8s-N, A8 Plus-N). Free logo printing is available on the cabinet back.

Key Features of the COB Series
  • Ultra-Thin, Streamlined Cabinet: Boasting an ultra-slim 42mm total thickness and minimalist aesthetic, the cabinet integrates flawlessly with various event spaces while boosting portability and optimizing space utilization.
  • High-Grade COB Technology: Featuring advanced Chip-On-Board packaging, the display offers a rugged, scratch-resistant surface that safeguards pixels against collision damage—ensuring stable performance even in high-foot-traffic environments.
  • Seamless Splicing & Immersive Visuals: Achieve gapless for large-scale installations. With an impressive 20,000:1 contrast ratio, it delivers crisp details, vibrant hues, and deep blacks, bringing high-definition content to life.
  • Easily splice into 4K or 8K screens with our versatile product lineup, including all-in-one LED TVs, LED posters, LED folding screens, curved LED screens, and COB soft modules. Elevate your space with tailored visual solutions.

COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall

COB Cabinet Project Case Study
COB P1.25 4K Resolution COB LED Display with 600nits Brightness and 100000hours Lifespan for Indoor HD Video Wall
